High-Efficiency
NeoTherm® XTR
The all new Laars NeoTherm XTR boiler and volume water heater delivers powerful performance and rugged reliability.
Find a Distributor
Boiler or Volume Water Heater
XTR-AORDINARY PERFORMANCE
The new NeoTherm XTR natural gas boiler and water heater design strikes the right balance of advanced technology, contractor focused features, and the robustness needed to perform year in and year out. Now with the Laars Linc® control system, 150 feet of vent, 10:1 turndown, and 96% thermal efficiency resulting in XTR-aordinary performance!
HIGH PERFORMANCE HEATING
Stainless steel, low pressure drop heat exchangerResponsive dual-venturi combustion system
96% Thermal Efficiency
10:1 turndown
Low NOx emissions
LAARS LINC®
Icon driven, easy to navigate touch screen menu structureUniversal control platform across Laars commercial heating products
Diagnostics in plain language
Cascade up to eight units
BMS compatible
VARI-PRIME® PUMP CONTROL
Controls a variable speed boiler pump to maintain a fixed, user-selectable, boiler temperature rise - maximizing total installed efficiency
VERSATILE INSTALLATION OPTIONS
Available in 399, 500, 650, 800, 999 and 1500 MBH sizesCategory II or IV up to 150 equivalent feet
Outdoor kit available
Common vent up to eight units

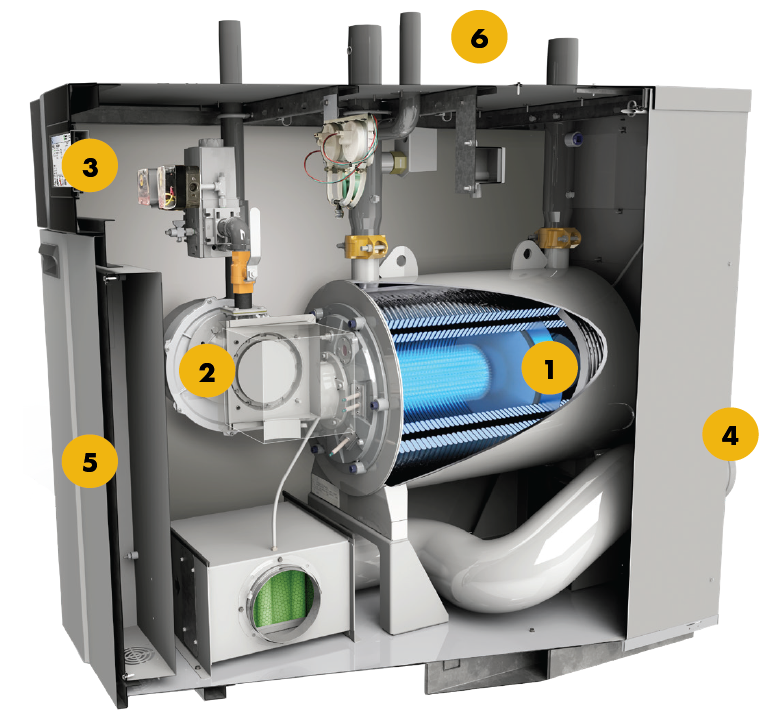

1. Stainless Steel, Low Pressure Drop, Water Tube Heat Exchanger
Smaller pumps required vs legacy design, reducing installation costs and minimizing electrical use.
Stainless steel construction, ideal for long-life condensing operation.
2. Laars X-Trac™ Combustion System with 10:1 Turndown
3. Powerful Laars Linc® Touchscreen Control Interface
4. Flexible Venting Options:
Exhaust vent connection adapts to stainless, polypropylene and CPVC.
Common vent multiple units.
150 ft of equivalent vent.
5. Easy Access Top, Front, and Side Panels
Major components can be accessed from the front of the boiler.
6. Water and Gas Piping Easily Accessible on Top of Unit
NeoTherm® XTR Details
| Doc No | Rev | Category | Description | View | |||
|---|---|---|---|---|---|---|---|
| Block Drawings | Block Drawings | ||||||
| 10089 | 2D / 3D CAD Files | NeoTherm XTR 300 | View Files | ||||
| 10090 | 2D / 3D CAD Files | NeoTherm XTR 500 | View Files | ||||
| 10091 | 2D / 3D CAD Files | NeoTherm XTR 650 | View Files | ||||
| 10092 | 2D / 3D CAD Files | NeoTherm XTR 800 | View Files | ||||
| 10093 | 2D / 3D CAD Files | NeoTherm XTR 1000 | View Files | ||||
| 10094 | 2D / 3D CAD Files | NeoTherm XTR 1500 | View Files | ||||
| Brochures | Brochures | ||||||
| 1474 | C | Brochures, Sales Literature | NeoTherm XTR Condensing Boiler or Volume Water Heater Brochure | Download | |||
| 1474-FR | Brochures, Sales Literature, French Documents | NeoTherm® XTR French Brochure | Download | ||||
| Install and Operating Manuals | Install and Operating Manuals | ||||||
| 1475 | C | Manuals | Installation and Operating Manual | Download | |||
| 1475-FR | C | French Documents, Manuals | NeoTherm XTR Installation Manual FRENCH | Download | |||
| Master Formats | Master Formats | ||||||
| 5094-31 | Master Format Documents | Specification Master Format Boiler | Download | ||||
| 5094-32 | Master Format Documents | Specification Master Format Water Heater | Download | ||||
| Parts Lists | Parts Lists | ||||||
| 1546 | D | Parts | Parts Numbers | Download | |||
| 1550 | Parts | Recommended Spare Parts List | Download | ||||
| Specification Sheets | Specification Sheets | ||||||
| 5084-110 | Specification Sheets | Boiler | View Files | ||||
| 5084-111 | A | Specification Sheets | Volume Water Heater | View Files | |||
| Submittal Data | Submittal Data | ||||||
| 1477 | B | Submittal Documents | Boiler | Download | |||
| 1477-FR | B | French Documents, Submittal Documents | Submittal Data, FRENCH | Download | |||
| 2197 | A | Submittal Documents | Volume Water Heater | Download | |||
| 2197-FR | A | French Documents, Submittal Documents | Volume Water Heater | Download | |||
| Technical Discussions | Technical Discussions | ||||||
| 1551 | Manuals | Common Venting Guide | Download | ||||
| Users Manuals | Users Manuals | ||||||
| 1476 | - | Manuals | Users Manual | Download | |||
| Warranty | Warranty | ||||||
| 8069 | Warranty | Boiler | Download | ||||
| 8073 | Warranty | Volume Water Heater | Download | ||||
