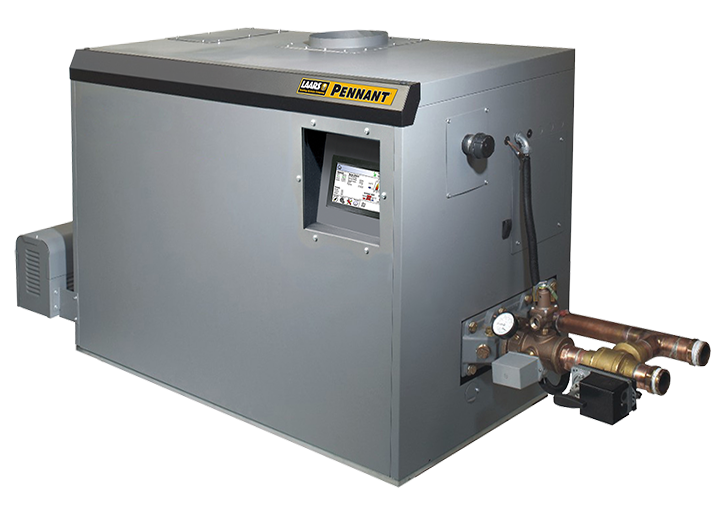

Pennant® Pool
The Pennant high-performance pool heating boiler delivers efficiency levels of 85% or more, and are standard with the Laars Linc® control.
Find a Distributor
Commercial Pool Heaters
Easy on the Environment
85+% EfficiencyEnvironmentally friendly low NOx
Flexible Configurations
Indoor/outdoor constructionRoom or outside air
Chimney or side-wall vent
Available in 7 sizes from 500 to 2000 MBH in natural gas or propane models
Reversible gas and water connections
Reversible vent and air intake terminals
Operates in altitudes up to 10,000 feet
Reliable, Durable, Easy
Factory pre-set auto by-pass system and combustion systemLaars Linc® intuitive touch screen control
Backwash mode switch helps avoid nuisance high limit shut-down during filter backwash
Automatic mixing system
Front panel diagnostics with Laars Linc control
Quick access panel for ignitor replacement
Pennant® Pool Details
| Doc No | Rev | Category | Description | View | |||
|---|---|---|---|---|---|---|---|
| Block Drawings | Block Drawings | ||||||
| 10075 | 2D / 3D CAD Files | Pennant Pool Heater 1000 | Download | ||||
| 10076 | 2D / 3D CAD Files | Pennant Pool Heater 1250 | Download | ||||
| 10077 | 2D / 3D CAD Files | Pennant Pool Heater 1750 | Download | ||||
| 10078 | 2D / 3D CAD Files | Pennant Pool Heater 2000 | Download | ||||
| 10079 | 2D / 3D CAD Files | Pennant Pool Heater 500 | Download | ||||
| 10080 | 2D / 3D CAD Files | Pennant Pool Heater 750 | Download | ||||
| 10081 | 2D / 3D CAD Files | Pennant Pool Heater 1500 | Download | ||||
| Brochures | Brochures | ||||||
| 3163 | F | Brochures, Sales Literature | Pennant® Pool Brochure | Download | |||
| Install and Operating Manuals | Install and Operating Manuals | ||||||
| 3164 | D | Discontinued Documents | Pennant Pool Pre-Touchscreen | Download | |||
| 3178 | D | Manuals | Pennant® Pool Install and Operating Manual | Download | |||
| 3178_FR | D | French Documents | Pennant® Pool Install and Operating Manual - FRENCH | Download | |||
| Parts Lists | Parts Lists | ||||||
| 3164-Parts | D | Manuals | Pennant Pool Heater | Download | |||
| Specification Sheets | Specification Sheets | ||||||
| 3161 | C | Specification Sheets | Pennant® Pool Specification Sheets | View Files | |||
| Start Up Guides | Start Up Guides | ||||||
| 1404 | Manuals | Pennant Pool Heater Start Up Guide | Download | ||||
| Submittal Data | Submittal Data | ||||||
| 3162 | L | Submittal Documents | PNCP Submittal Data | Download | |||
| Warranty | Warranty | ||||||
| 8027 | D | Warranty | Pennant® Pool Warranty | Download | |||
