Commercial Tankless Electric N Series

Precise | Reliable | Durable | Tankless

The Laars Heating Systems N Series (Formerly CNA) tankelss electric water heaters are designed specifically for heavy industrial fluid applications. Heaters activate only when needed and provide an unlimited supply of hot water to meet the needs of your heavy industrial application. Heaters activate at 1.5 gpm (5.7 lpm) and can handle water flow up to 50 gpm (189 lpm).

The N Series is suited to a variety of large industrial markets including mining, breweries and wineries, power generation, petrochemical, agricultural and water treatment plants.

kW Range: 36 - 144 kW

Flow Range: 1.5 - 50 gpm (5.7 - 189 lpm)

Standard Voltages: 480V, 600V 3-Phase

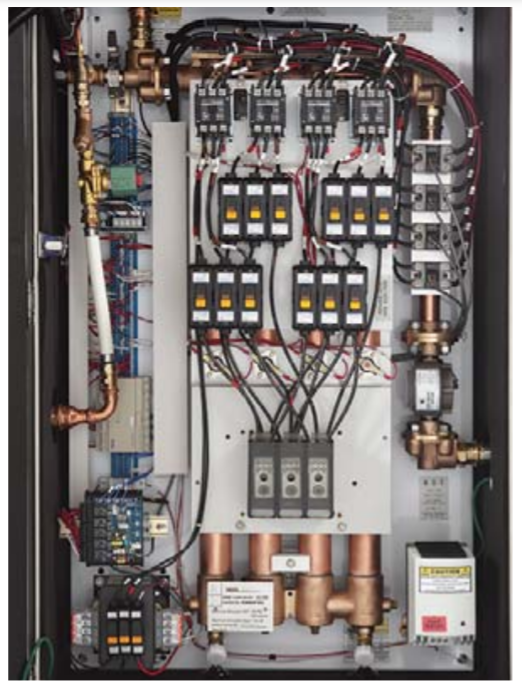

Picture of Commercial Tankless Electric N Series

Standard Features

  • PID Temperature Controller
  • Simple Touch Operation
  • Precise Temperature Range & Flow
  • Incoloy 800 Elements
  • Low Watt Density Element
  • Recirculation Capable
  • Liquid-Cooled Solid State Relays
  • Auto Reset High Limit Switch
  • Bi-metal Manual Resets
  • NEMA 4 Enclosures
  • Independant & Redundant Safeties
  • Durable Plumbing  Assembly
  • Reliable Performance & Minimal Maintenance



Optional Features

  • NEMA 4X Enclosures
  • Building Management Systems Integration
  • High Temperature Package
  • Internal Fused Disconnect
  • Integral Ground Fault
  • ASME Heat Exchanger
  • Freeze Protection Package
  • Explosion-Proof Purge System
